Item.: custom electromagnetscustom push-pull solenoid

In order to provide you correct solenoid, please specify following requirements:

1. Voltage:
2. Stroke:
3. Force:
4. On duty Cycle:  one action time
5. Off duty cycle: one action time
6. Working temperature:
7. Waterproof ,   shakeproof ,
8.Corrosion-Proof,   Oil proof, etc
10. Round or Cube Shape
11. Installation space:
12. Quatity:
13. Delivery time:
14. Other requirements:
We will recommed you suitable items or send you solutions at good price.

Custom Electromagnet Samples:

If you like us make solenoid parts, please let us know the following details.

Specification for reference:
Product name: DC solenoid electromagnet; rated Voltage: DC 4. 5V;
Type: push pull
Force and stroke: 40G/2mm; energized rate: 25 percent ; body Size: 20 x 12 x 11 mm / 0. 8" x 0. 47" x 0. 43"(L*w*t)
Sizes: 1-1/4" dia. to 6" dia. & 2-1/2" sq. to 4" x 8" rectangular
Holding value: up to 1,700 lbs.
Operation voltages: 110 V. AC
Shapes: Round, Square, and Rectangular
Styles: Plug-in or In-line available.
Plunger bar Size: 3 x 40 mm / 0. 12" x 1. 6"(D*l); cable Length: 10cm/3. 9"
Material: metal, electronic parts; main color: as picture Shown
Weight: 12G; package content: 1 x DC solenoid electromagnet
Size: DC4.5V 20*12*11,DC12V 13*15*20,DC12V 13*15*30,DC12V 14*16*30,DC12V 16*19*30,DC12V 20*26*37 , DC12V 20*26*39, DC12V 22*25*26,DC12V 24*29*38, DC12V 24*29*40, DC24V 20*26*39,
DC24V 27*30*53, DC24V 37*41*50
Featured DC electromagnets for specific applications
Opposite pole for repulsive applications
Auto-release for light weight parts
High-temp for high ambient applications
Bi-polar for longer reach field
Thru-hole for precision position
V-block for cylindrical parts
Nickel-plated for rust prevention
High-rate for high switching applications
Pull type, linear motion, tubular, DC solenoid electronmagnet.
DC Solemoid Electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc.  Solenoids of this category work externally through pulling in plunger.


The photos,specifications and prices are only for references,customized electromagnet parts are welcomed to inquiry us. we can make quick-response and cost-efficient solutions for your special needs.  with our rich experiences and knowledge, you will benefits from our products and services beyond your expect !  order will allowed to be placed when all specifications,quantity confirmed.


Request a Quote :


   WhatsApp: +8618126328400       Wechat/QQ: 182352408

More examples showing here .

mini electromagnet solenoid 12v electromagnet 12 volt small electro magnet 24V coil 6V electric magnet-in Magnetic Materials ,

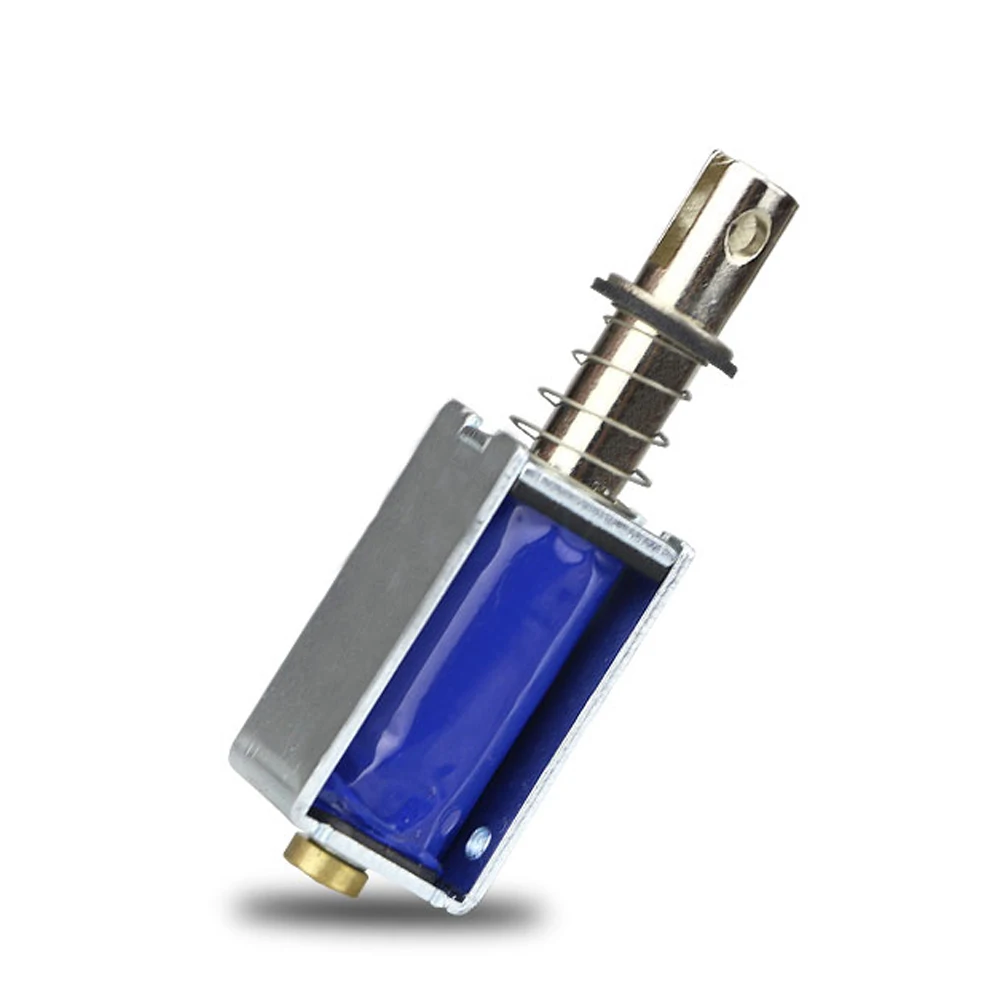

DC6V-12V DC electromagnet high efficiency frame suction type,

Round and Rectangular Flat-Faced Electromagnets

DC 12V 400mA 10 mm 40N Pull Type Open Frame Electromagnet Solenoid for Door Lock

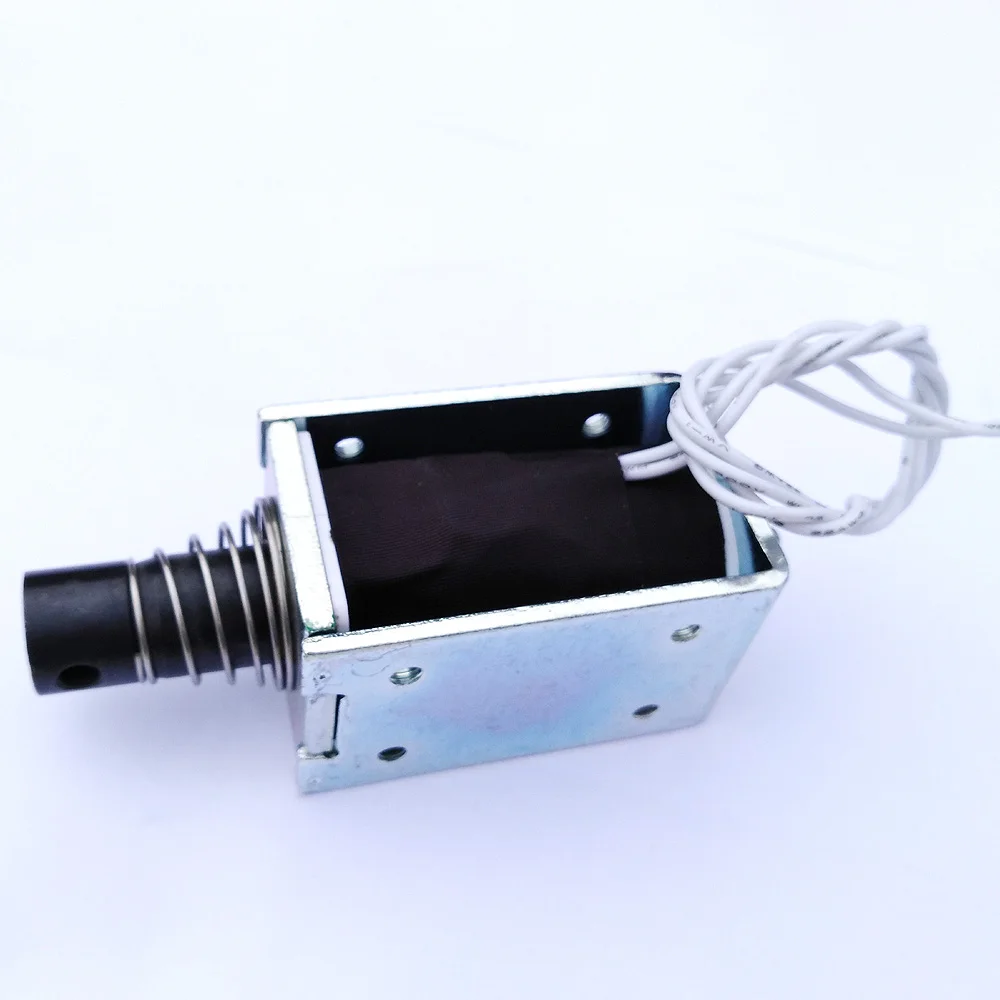

Open Frame Actuator Linear Mini Push Pull Solenoid Electromagnet

Small Push-Pull Solenoid - 12VDC

Open Frame Actuator Linear Mini Push Pull Solenoid Electromagnet

1. Pull style, rectilinear motion,DC solenoid ,DC electromagnet.
2. It used for security products, security cabinet,intelligent door lock, automatical equipment, beauty device,toy,machine,etc.
3. It work by pushing the plunger outward.
4. When energized,working by pulling the plunger to connect the object.
5.Do not exceed the rated parameters by 5%.
6. All material ROHS approved.
7. Mechnical lifespan: Over 500,000 times.

Electromagnets must meet the following conditions to achieve maximum suction:

1,The object to be sucked must have a good magnetic permeability.

2,Proper use of power supply, rated voltage.

3,The object to be sucked must be flat and clean.

4,The object to be sucked must be greater than or equal to the surface of the magnet

( For example: the magnet is 20*15 mm , so the surface area is

S=π=10²π mm²

so the object to be sucked must be greater than or equal to 10²π mm² )

5,The object to be sucked must be greater than 8mm.(If the thickness decreases, the suction decreases)

6,The object to be sucked must be close, the middle can't be interspersed with objects or gaps

We have equipment:

High precision hydraulic machine, punching machine, stamping machine, Automatic rubber coating Machine ,coil winding machine,Riveting machines Open Frame Actuator Linear Mini Push Pull Solenoid Electromagnet

What we know: A long straight coil of wire can be used to generate a nearly uniform magnetic field similar to that of a bar magnet. Such coils, called solenoids, have an enormous number of practical applications. The field can be greatly strengthened by the addition of an iron core. Such cores are typical in electromagnets.

Open Frame Actuator Linear Mini Push Pull Solenoid Electromagnet
