Solenoid Lock Manufactuer

6V 12V Dc small solenoid lock

Product Name: Cabinet Lock Mini Solenoid

Model: 0527-6V, Pull Type

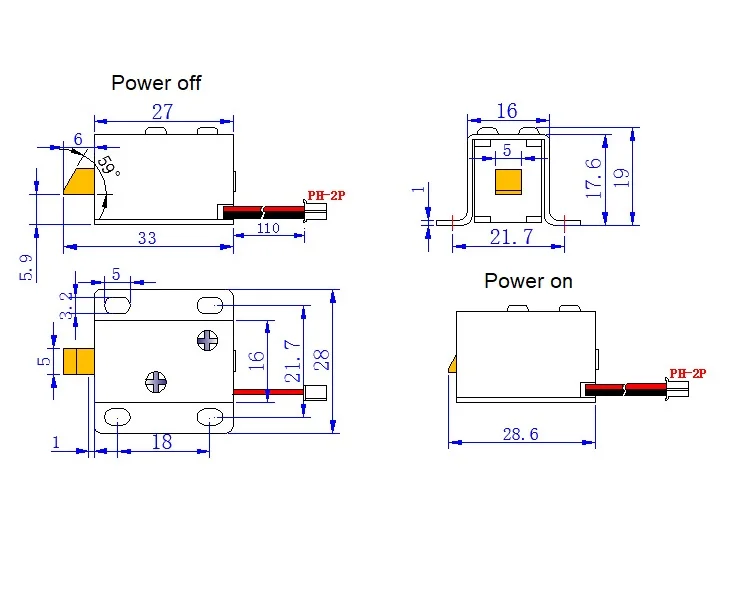

Size: 27 x 28 x 19mm

Power: 6V, 1A; 12V, 0.43A; 24V, 0.53A

Force: 70g at stroke 4.4mm

Work Duty Cycle: 10%

Specifications

DC6V (1.0A) | Stroke:4.4mm | Force:0.07kgs | Max:2min

DC12V (0.42A) | Stroke:4.4mm | Force:0.07kgs | Max:2min

DC24V (0.57A) | Stroke:4.4mm | Force:0.08kgs | Max:3min

If this Solenoid lock doesn't meet your needs, please feel free to contact us. We'd be happy to recommend suitable options based on your requirements or provide customized solutions. We're committed to offering you high-quality products and excellent service.

Solenoid Lock Features:

• Triple-layer nickel plating on both casing and frame for superior corrosion resistance

• Smooth operation with copper lock sleeves and burr-free polishing to prevent sticking

• Optional signal wire with short-circuit switch signal (conductive when locked, disconnected when unlocked)

• Dual-base design for enhanced structural strength and deformation resistance

• 4-way adjustable installation (up/down/left/right) for cabinets and drawers

• All-coil winding ensures stable heating and heat resistance (recommended activation: 0-10 seconds)

Customer Reviews:

"These locks have been working perfectly in our access control system for over a year now. The build quality is exceptional compared to other brands we've tried."

— Amazon Verified Purchase (B01FH1JCPU)

"Impressed by the smooth operation and durability. We've installed these in multiple security cabinets without any failures. The adjustable mounting is a game-changer."

— Industrial Buyer (B01FH11ZLY)

Our Clients:

As a reliable solenoid lock manufacturer, Our products are mainly applied in the following fields:

Financial equipment (intelligent compact shelving systems and access control)

Electronics manufacturers (including Apple's Chinese contractors for secure labs/production floors)

Medical device companies (e.g., endodontic microscope security systems)

Hospitality sector (hotel rooms, meeting spaces, warehouses with smart locking systems)

Educational institutions (emergency exit controls in student dormitories)
